Precision Machining

ROBOTICS MACHINING

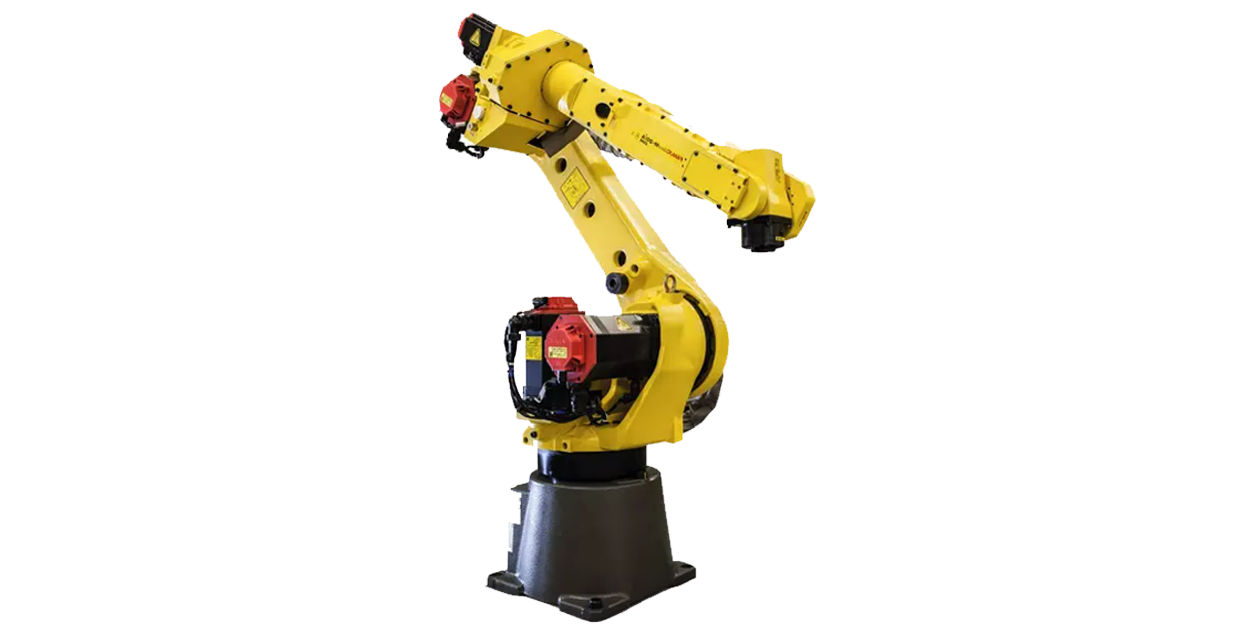

VF-3SSYT (MACHINING CENTER) WITH ROBOT

  • FANUC ROBOT M-20iD35
  • X Axis 40.00”
  • Y Axis 26.00”
  • Z Axis 25.20”

MILL TURN

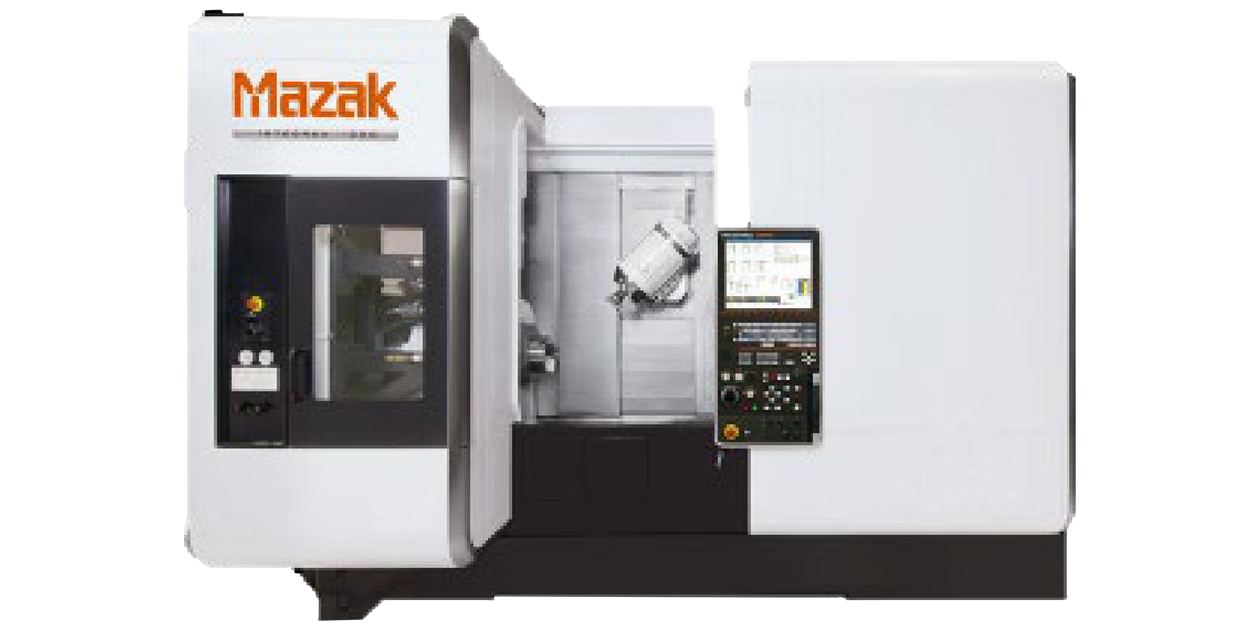

MAZAK: INTERGREX i-200S(5-axis)

  • Milling spindle B-Axis 240 degrees
  • X Axis 24.21”
  • Y Axis 10.24”
  • Z Axis 42.40”
  • W Axis 41.97”

CNC LATHES

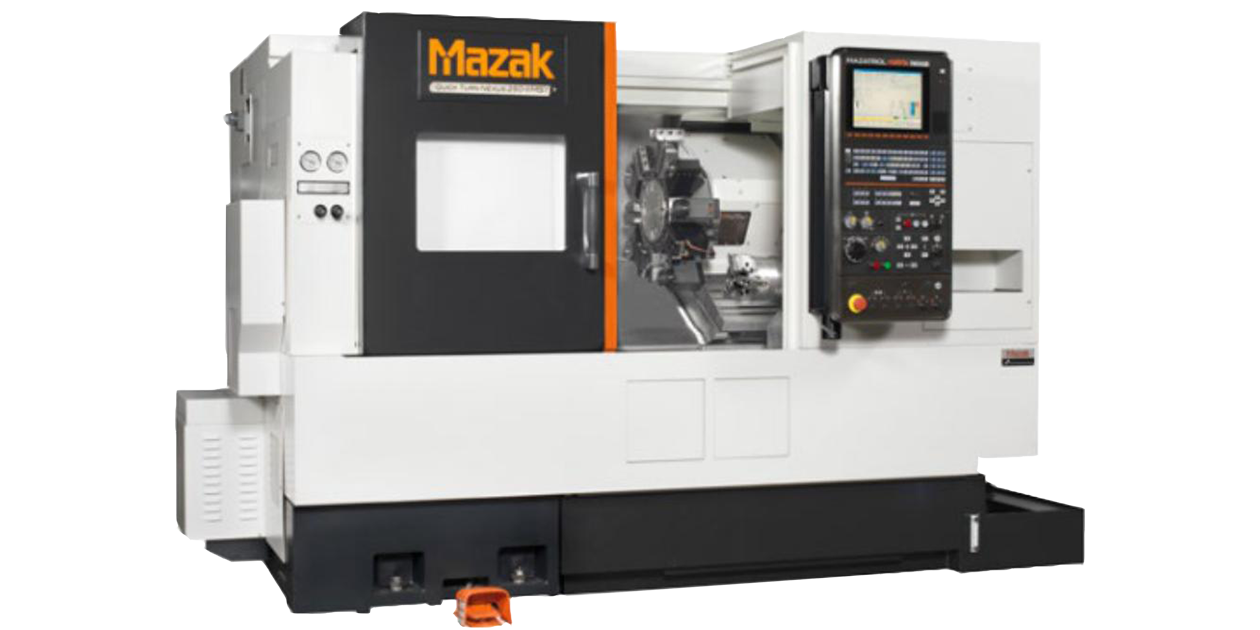

MAZAK: QUICK TURN NEXUS-250-II MSY
(Sub Spindle)

  • X Axis 9.00”
  • Y Axis 3.930”
  • Z Axis 22.63”

MAZAK: QUICK TURN 250MSY (Sub Spindle)

  • X Axis 9.00”
  • Y Axis 4.00”
  • Z Axis 22.63”
  • W Axis 23.00”

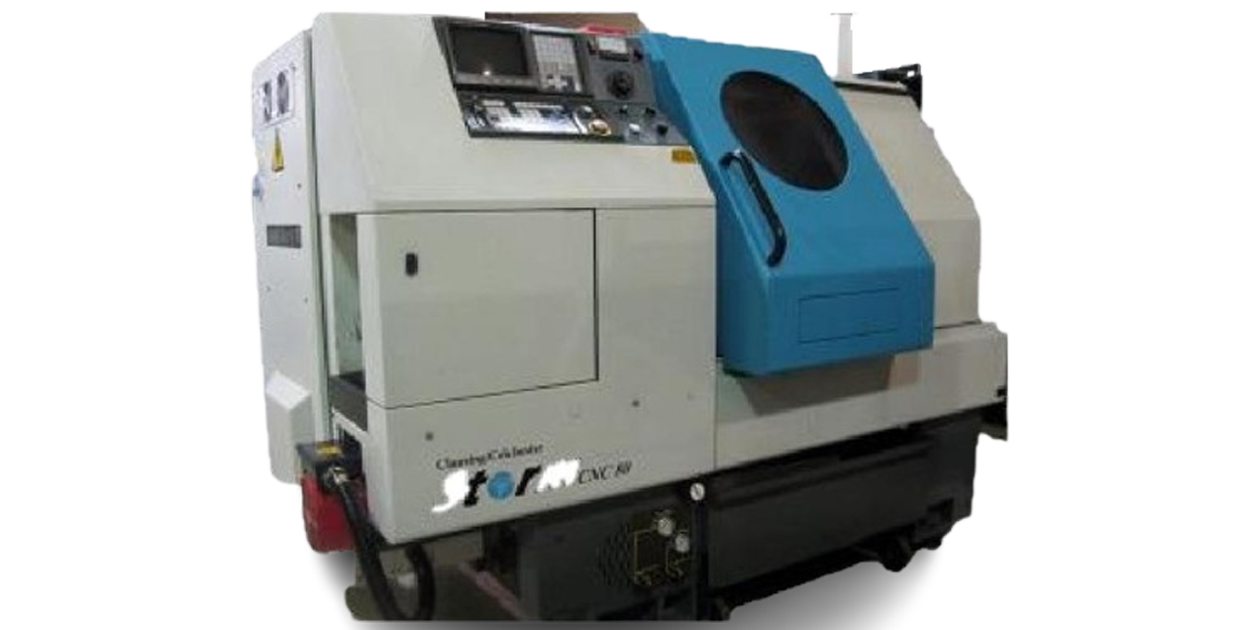

CLAUSING/COLCHESTER: STORM 80 2 Axis
(Tail Stock)

  • X Axis 6.50”
  • Z Axis 13.780”

CNC MILLS

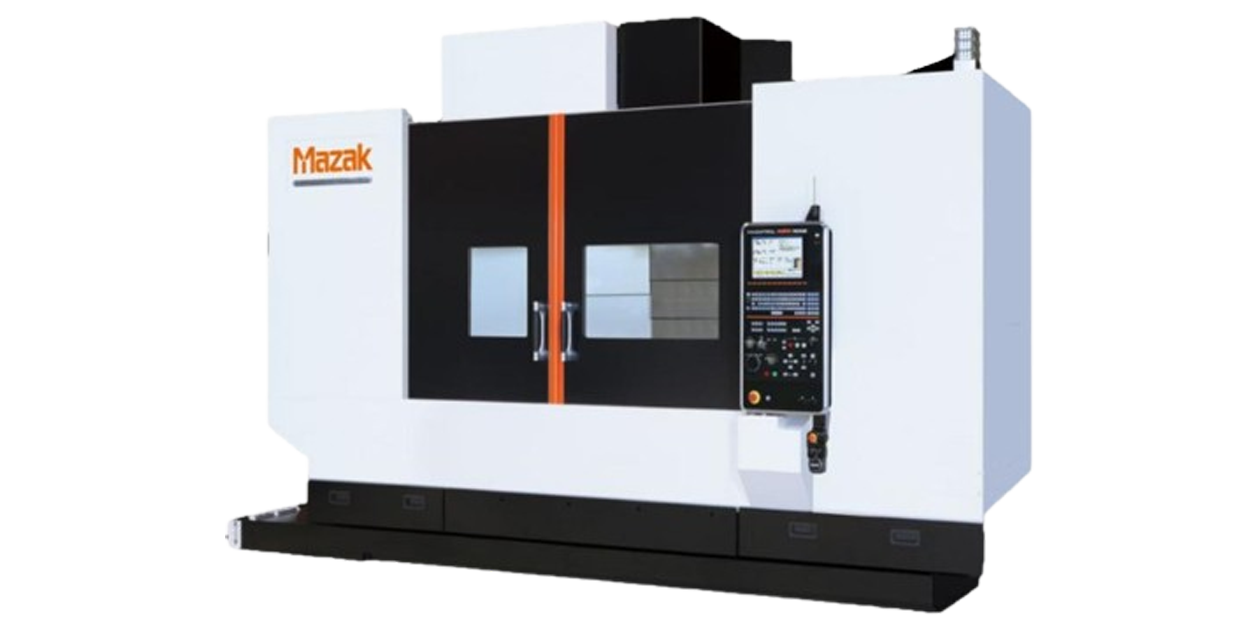

MAZAK: VERTICAL CENTER NEXUS 510C-II

  • X Axis 41.40”
  • Y Axis 20.10”
  • Z Axis 20.10”

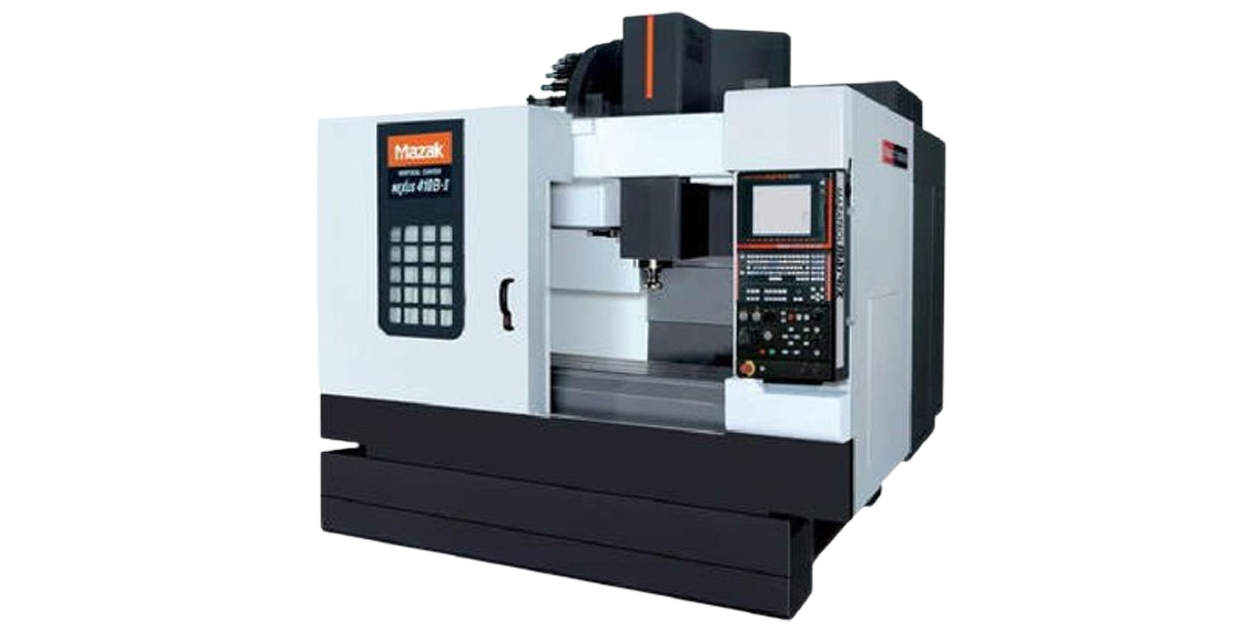

MAZAK: VERTICAL CENTER NEXUS 410B-II

  • X Axis 30.00”
  • Y Axis 16.20”
  • Z Axis 18.80"
MAZAK VC-Ez 20

  • X Axis 41.34”
  • Y Axis 20.08”
  • Z Axis 25.00”
HAAS VF-9 (MACHINING CENTER)

  • X Axis 84.0”
  • Y Axis 40.0”
  • Z Axis 30.0”
HAAS VF-7 (MACHINING CENTER)

  • X Axis 84.0”
  • Y Axis 32.0”
  • Z Axis 30.0”
HAAS VF-2 SS (MACHINING CENTER)

  • X Axis 30.0”
  • Y Axis 16.25”
  • Z Axis 19.80”
HAAS VF-3 (MACHINING CENTER) 4th Axis

  • X Axis 40.00”
  • Y Axis 20.00”
  • Z Axis 24.40”
HAAS VF-1 (MACHINING CENTER)

  • X Axis 20.25”
  • Y Axis 16.25”
  • Z Axis 16.00”
HAAS VF-0 (MACHINING CENTER)

  • X Axis X20.25”
  • Y Axis 16.25”
  • Z Axis 16.25”

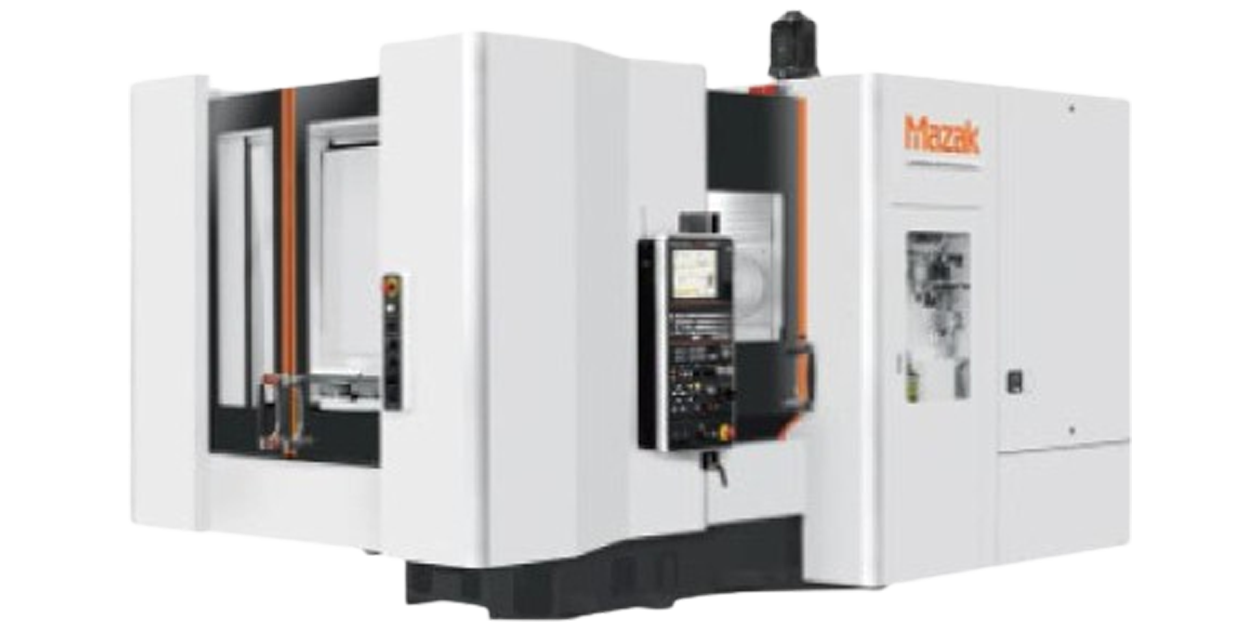

MAZAK: Horizontal Center Nexus 4000 III

  • X Axis 22.05”
  • Y Axis 25.20”
  • Z Axis 25.20”

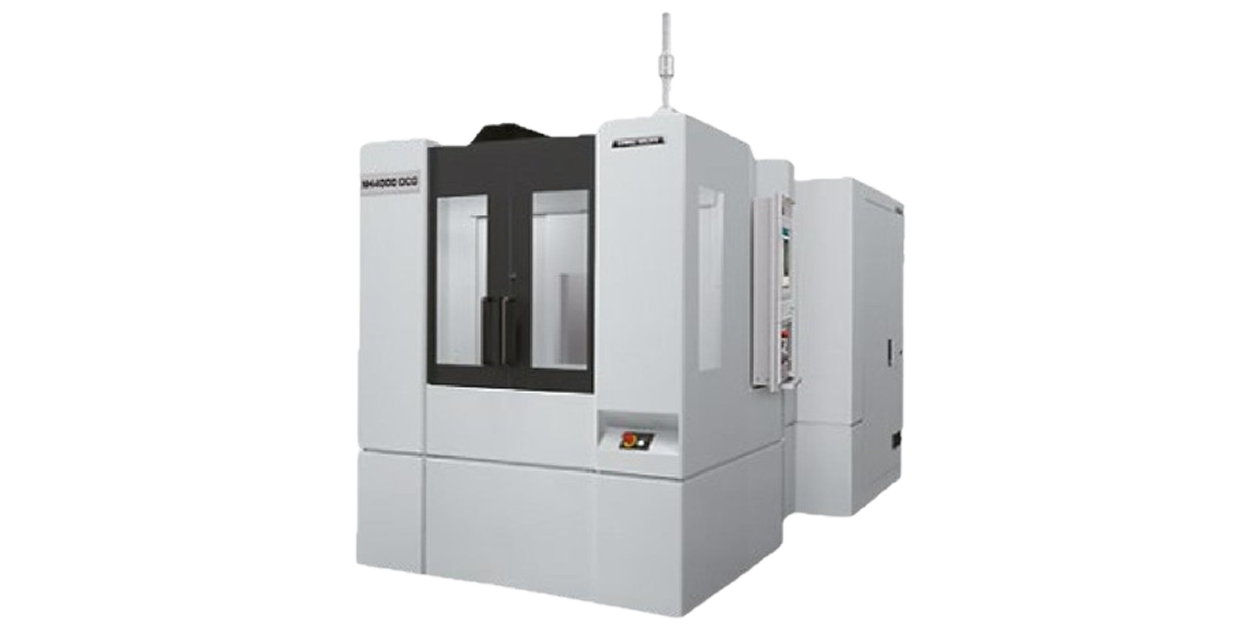

MORI SEIKI NH 4000 DCG

  • ROTAING A & B PALLET WITH 4th Axis on each
  • X Axis 24.00”
  • Y Axis 22.00”
  • Z Axis 24.80”

Manual Lathes, Mills & Saw:

HEM SAW:

  • 14” AUTO TRAVEL
  • HARDINGE:
    ‣TOOL ROOM LATHE (Tail stock)
  • BRIDGEPORTS:
    ‣ TRAVEL 9” X 24”
    ‣ TRAVEL 9” X 30”
Grinding Department:

  • BROWN & SHARP 618 MICROMASTER
  • BOYAR SHULTZ H618
